Please Click Your Brand

​

JUMP TO: SBDINC

BLACK & DECKER  |  DEWALT  |  ELU  |  STANLEY MACHINES

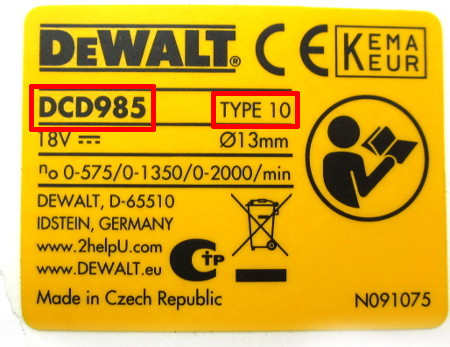

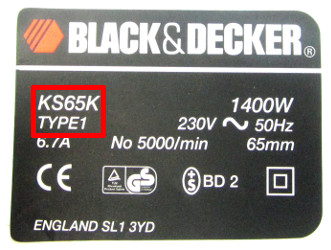

The important information is the Model Number and the Type Number or H Number, e.g. DCS577 Type 1 or  BDCDD18 H1. It is important to match up the type number with the diagram because a different type number can use different parts.

 ​

BOSTITCH MACHINES

BOSTITCH MACHINES

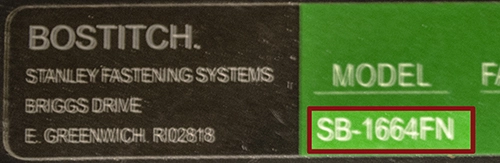

You will only need the Model Number to find the specific parts diagram for your machine. On the example below, this is SB-1664FN. Bostitich machines do not have type numbers.

DRAPER TOOLS

DRAPER TOOLS

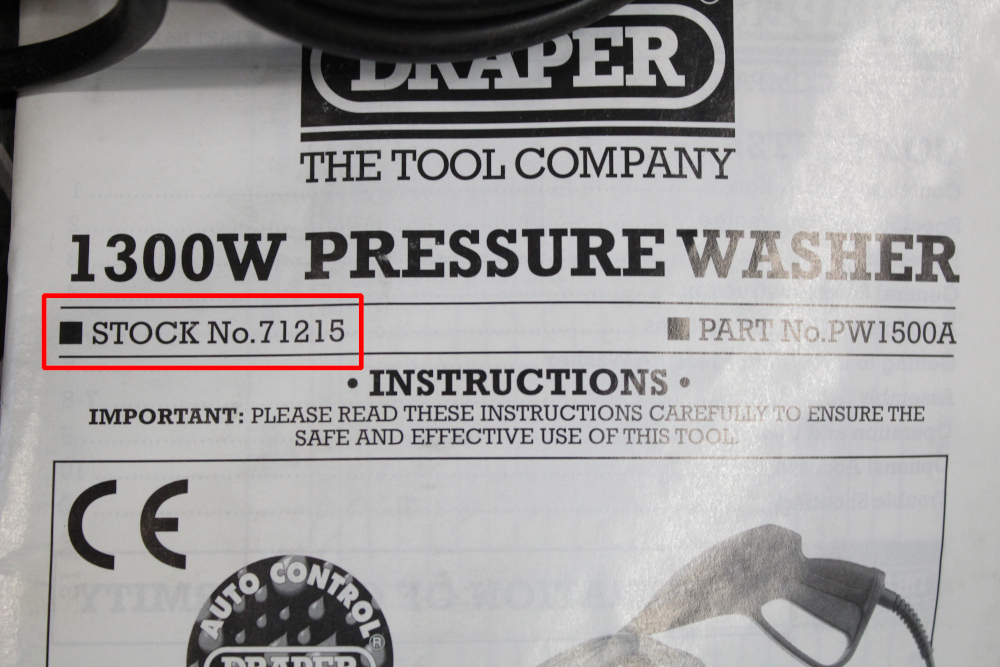

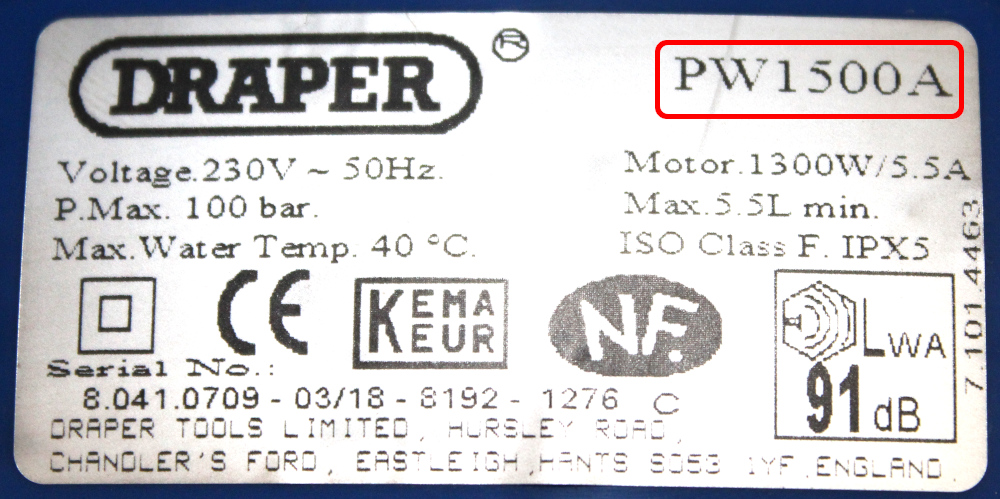

Draper products tend to have both a 5-digit stock number as well as a Part / Product No. While the ratings plate will have the Part No. you will more than likely need the Stock Number (pictured below on a manual, but it can also be found on the original box) to find the correct diagram for your machine.

EVOLUTION MACHINES

EVOLUTION MACHINES

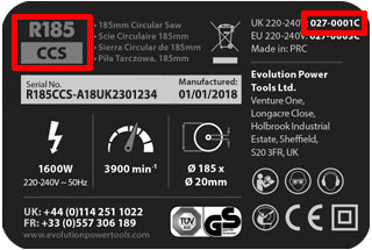

You will need the specific Product Number for your machine, highlighted below in red as 027-0001C. There is also the Model Number, again highlighted in red as R185 CCS.

FACOM MACHINES

FACOM MACHINES

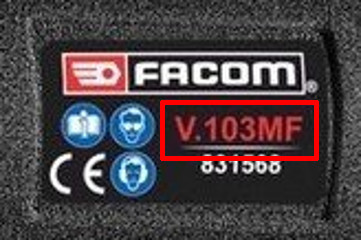

You will need the Model Number of the machine. The model number on the example below is V.103MF. Facom machines do not have type numbers.

FESTOOL MACHINES

FESTOOL MACHINES

Festool machines will have an important 6 digit T-Nr, which relates to your specific machine, in addition to a model number. On the example below, the T-Nr is 494264 while the model number is KS 120 EB.

HITACHI / HI-KOKI MACHINES

HITACHI / HI-KOKI MACHINES

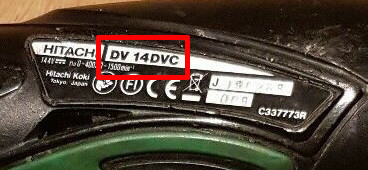

You will need the Model Number to find the correct diagram for your machine. On the below example, this would be DV 14DVC

MAKITA MACHINES

MAKITA MACHINES

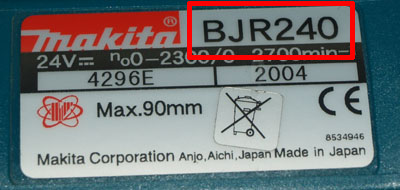

You will need the Model Number to find the correct diagram for your machine. On the below example, this would be BJR24

METABO MACHINES

METABO MACHINES

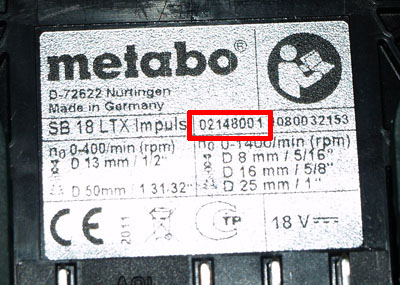

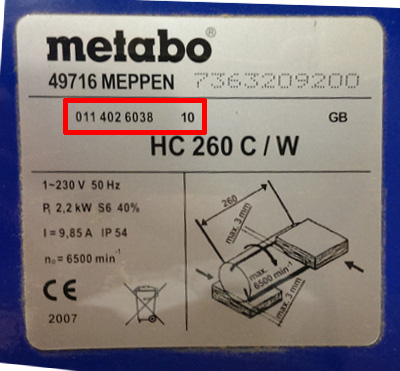

You will need the Product Number which varies from 8 to 12 digits. On the below examples, the Product Number is 0114026038 10 (the space is important)! Note that you will have a Model Number, HC 260 C as seen below, but this is less important. Similarly the Product Number on the 2nd example below is 02148001.

PASLODE MACHINES

PASLODE MACHINES

For Paslode machines, you will have a Model Number and a 6-digit Product Number. The Product Number is the specific number for your model of machine and will help you find the correct diagram. In the example below this would be 085010.

ALFRA / REFINA MACHINES

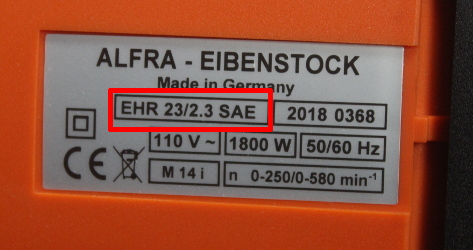

These machines use the same parts and in turn use the same parts diagrams. You will need the Model Numbers, highlighted below in red.
