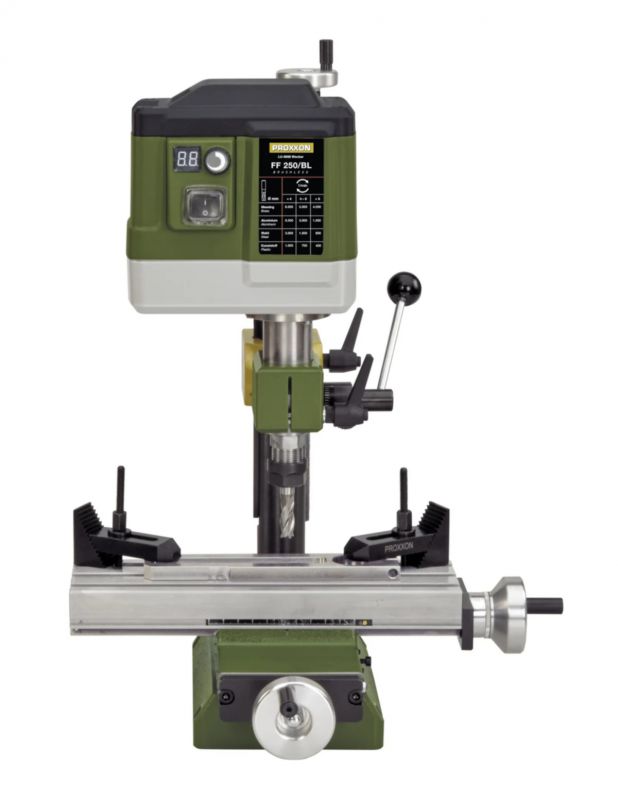

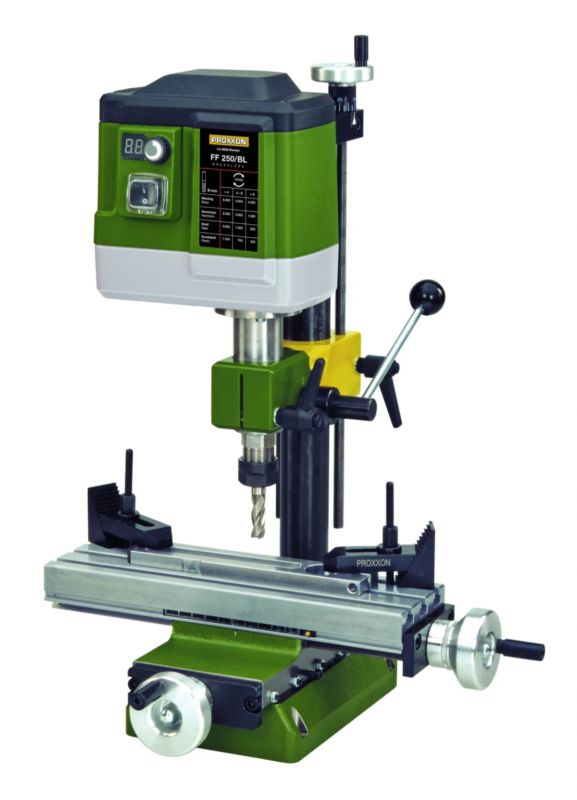

Milling Machine FF 250/BL

Variable speed pre-selection from 400 - 6.000rpm. Digital speed indication. The headstock swivels through 360°, indicated on a scale.

230V-operation. The sophisticated control via rotor position and speed sensors guarantees high torque also in the lower speed range. Tool holder using multiple range collets type ER 16 (DIN ISO 15488). One each of 6 - 8 - 10mm are included. Solid plane-milled steel compound table with 3 continuous T-slots.

Technical data:

Diameter of Column: 35 mm
End Milling Capacity: 10 mm
Face Milling Capacity: 10 mm
Head Tilt: 90° - 0° - 90°
Lateral Table Movement: 170 mm
Longitudinal Table Movement: 65 mm
Max Drilling Mild Steel: 10 mm
Nett Weight: 17 kg
Nose of Spindle to Table [Max]: 200 mm
Overall L x W x H: 180 mm x 130 mm x 500 mm
Plug Fitted: UK 3 pin plug
Power: 250 W
Rating: Home/Light Trade
Spindle Speed: 400 - 6,000 rpm (Var)
Spindle Taper: ER16 Collet
Spindle Travel: 30 mm
T Slot Size: 12 mm x 8 mm
Table Size: 270 mm x 80 mm
Throat: 65 mm
Voltage: 230 V
