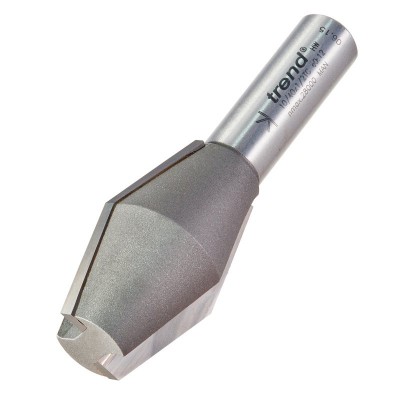

TREND 10/40X1/2TC BUTTERFLY SPLINE CUTTER 104 DEG

To rout butterfly keys, splines and inlays in timbers and man-made boards.
Use in conjunction with 104 deg (14 deg) dovetail cutter ref. L120 which cuts dovetail pocket.
Use in a router table.
Cut material in two passes to create a butterfly shape, width of butterfly spline is determined by dovetail cutter used.


Dimensions:

D=28.0 mm
C=46 mm
A=104 degrees (14 degrees)
Shank Diameter=1/2 inch


Shank Diameter: 1/2

Diameter Metric: 28

Cut Length Metric: 46

Angle: 104
