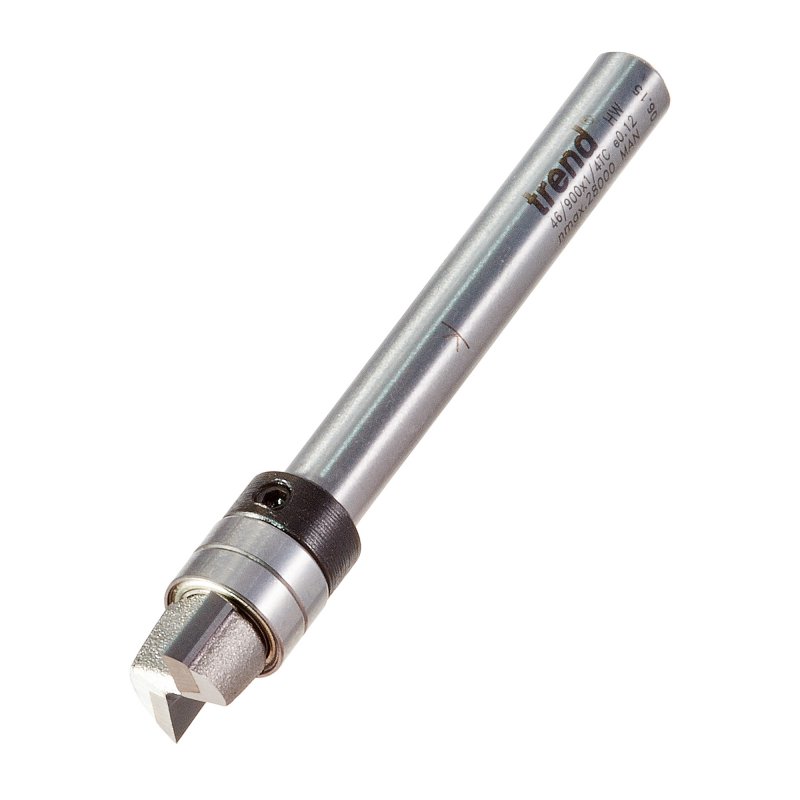

TREND 46/900X1/4TC GUIDED PROFILER 9.5MM DIAX6.35MM C

Profiler with shank mounted bearing guides.
For use with router mounted above or below a table when following a template.
For profiling and rebating applications only.
Not for plunge cutting/grooving.
A 3mm maximum overlap should be left before trimming.
They are ideal for template making.
Cutter has a smaller diameter for tighter corners and double bearing guides.

Dimensions:

D1=3/8 inches
D1=9.5 mm
C=1/4 inches
C=6.35 mm
Overall length=45 mm
B=9.5 mm
A=90 degrees
Shank Diameter=1/4


Shank Diameter: 1/4

Diameter Imperial: 3/8

Diameter Metric: 9.5

Cut Length Imperial: 1/4

Cut Length Metric: 6.35

Overall Length Metric: 45

Bearing Diameter Metric: 9.5

Angle: 90
