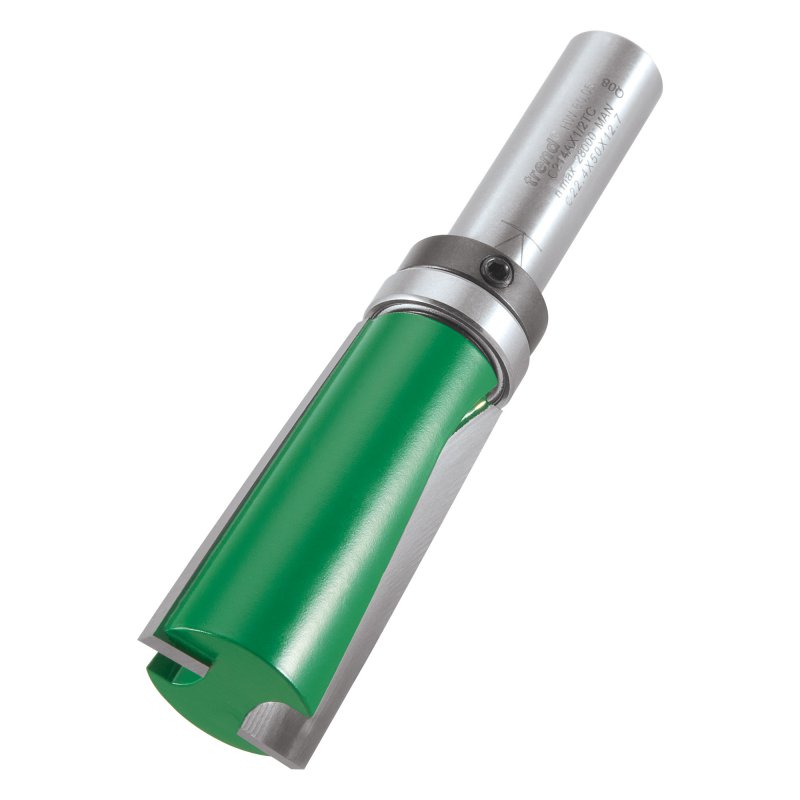

TREND C214AX1/2TC GUIDED 2 DEG UNDERCUT 50MM CUT

2 degree undercut router bits for routing a leading edge on doors to allow a tight fit against jamb.
Shank mounted bearing self guides the cutter along door edge.
1/2" shank 24.2mm diameter 50mm cut depth 2¡ undercut twin flute TCT cutter.
Shank mounted bearing allows door edges to have clearance reliefs routed in a single pass.
2¡ undercut prevents hinge and leading edge bind.
50mm cut depth ideal for external doors and fire doors up to 45mm thick.
Speeds up door fitting for increased productivity.
PTFE coated bodies reduces friction and heat build-up for longer lifespan.
2mm thick Premium Micro-granular Tungsten Carbide Tips for an excellent finish in all materials.
KÕ marked shank ensures correct insertion depth for safe routing.
Additional shank markings to indicate maximum safe speed and cutter reference.
Extra-long shank for use in router tables.

Dimensions:
D=22.5 mm
C=50 mm
OL=100 mm
B=19 mm
A=2 degrees
Shank Diameter=1/2 inch
Ideal for a front door


Shank Diameter: 1/2

Diameter Metric: 22.5

Cut Length Imperial: 2

Cut Length Metric: 50

Overall Length Metric: 100

Bearing Diameter Metric: 19

Angle: 2
