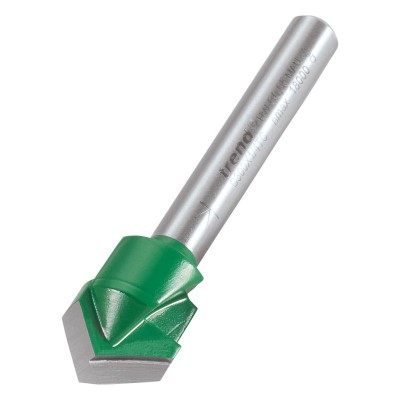

TREND C300X1/4TC ALUCOBOND 45 DEG V GROOVE X 13MM

Specially designed tools for aluminium composite cladding material such as Alucobond, Dibond which comprises an aluminium cover with polyethylene core.
The v groove cutters rout into the cover and part of the core to allow folding of material by hand.
Has a 90 degree included angle with 3mm flat at base and is used to create 90 degree fold.
Use at 12000-15000 RPM, feed speed 400 - 600mm/min. depending on thickness and machine (CNC machine or hand). Cooling is not required.
1/4" shank 13mm diameter 10mm cut depth twin flute TCT cutter.
Specialist cutter for routing insulated aluminium panels.
Cleanly removes the waste from the insulated side to allow panels to be folded to a 90¡ profile.
1/4" shank for light duty applications and easy control in smaller routers.
PTFE coated bodies reduces friction and heat build-up for longer lifespan.
2mm thick Premium Micro-granular Tungsten Carbide Tips for an excellent finish in all materials.
KÕ marked shank ensures correct insertion depth for safe routing.
Additional shank markings to indicate maximum safe speed and cutter reference.
Extra-long shank for use in router tables.

Dimensions:
D=13 mm
C=10 mm
OL=57 mm
A=45 degrees
Shank Diameter=1/4 inch

Shank Diameter: 1/4

Diameter Metric: 13

Cut Length Imperial: 25/64

Cut Length Metric: 10

Overall Length Metric: 57

Angle: 45
