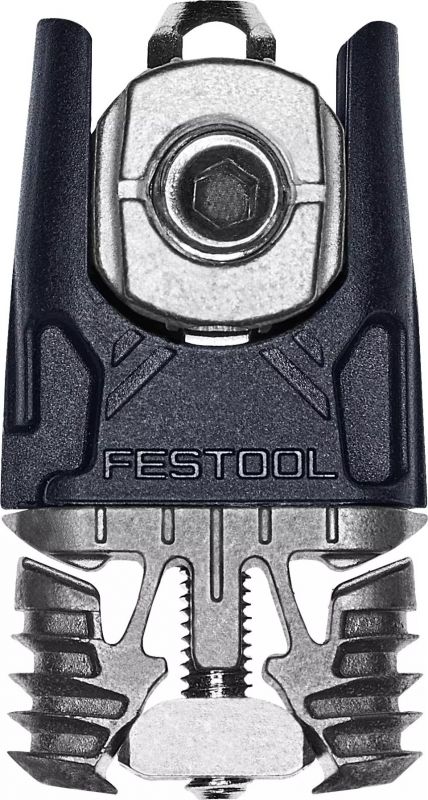

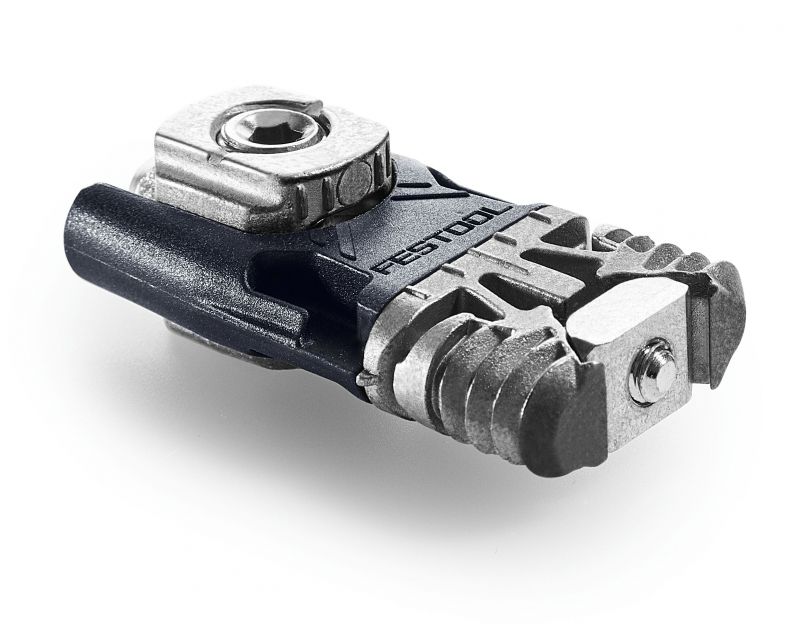

Festool 203166 Corner connection

Items included
50x Split anchor
50x Bolt with M4 thread

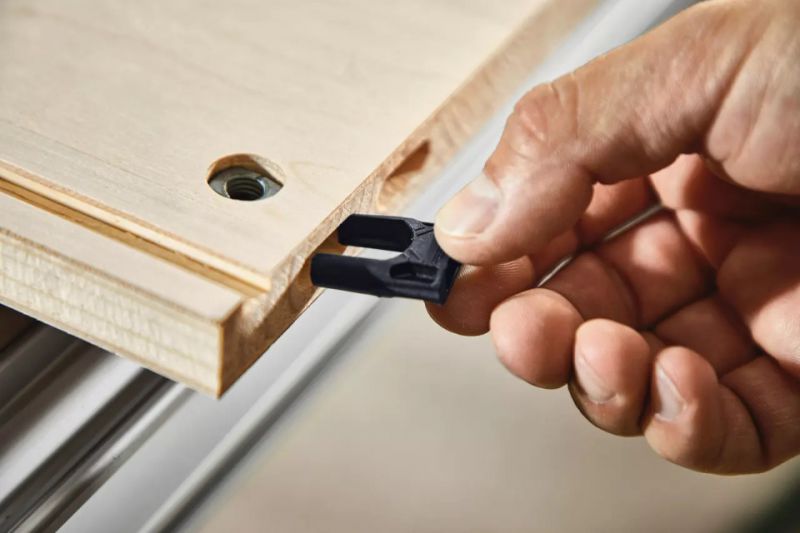

50x Plastic trays
50x Cross anchor with threaded pin
without cover caps
Qty. in pack: 50.00 Pieces

The perfect joint. Now even more versatile. The new basic structure connectors and furniture connectors for the DOMINO DF 500 joining machine.
The new DOMINO basic structure connectors and furniture connectors enable stable yet flexible furniture designs that can be separated again. Because of their great versatility, they provide for a very large range of applications – from corner panel joints to centre panel joints to joints between a series of holes. For unique flexibility, speed and efficiency.

The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly

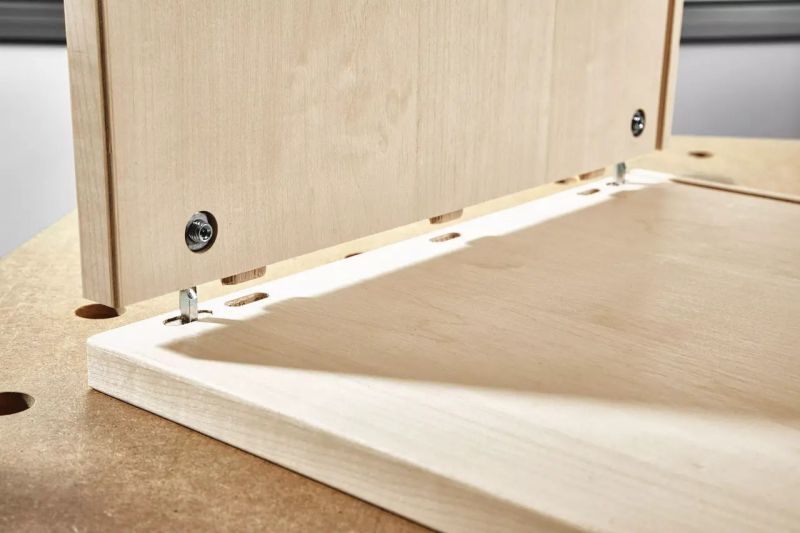

The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
The flush-screwed fixture elements protect each furniture component from being scratched
Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
The new detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm
for 50 corner joints with the DF 500
the DOMINO/DOMINO KV D8/50 connector is positioned both in the cupboard panel and the base of the structure with the DOMINO jointer DF 500

Systems get it done:
The new DOMINO basic structure connectors and furniture connectors can be positioned simply and universally – in combination with DOMINO or a series of holes.

Achieve ideal results more quickly:
Because of its high tolerance compensation and high stability, the stable yet detachable DOMINO jointing system enables seamless assembly and disassembly of a piece of furniture – in the workshop as well as with the customer.

Convenient and safe:
All joints are simple and quick to machine like usual using the DOMINO DF 500 joining machine – no additional special machine is required.

With the DOMINO jointer DF 500
All joints can be produced quickly and easily with the DOMINO DF 500 joining machine.

Finished in just three steps

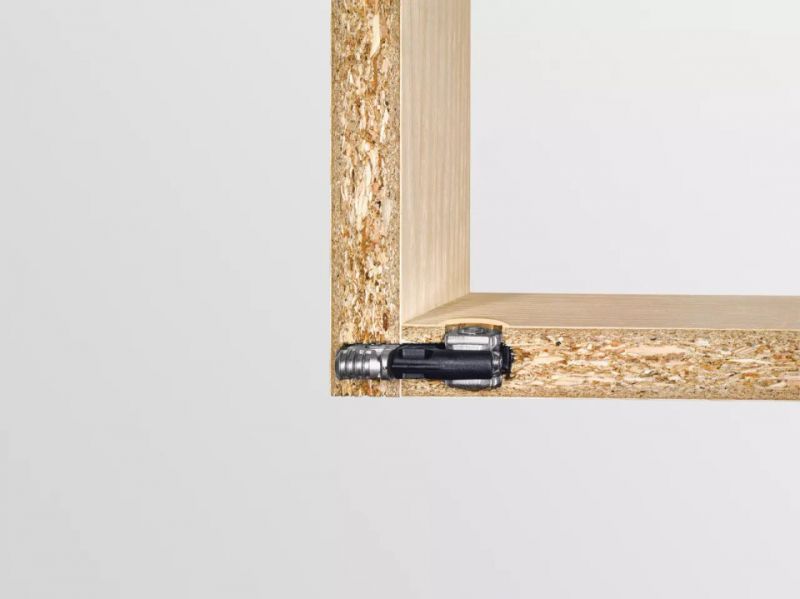

With only two DOMINO routed holes and one drilled hole, the corner joint is produced quickly and without additional measurements.

It could not be easier
There is no easier way of producing a detachable corner joint. The drill template – which can be used with an extraction system – specifies the exact position of the drilled hole and the correct drilling depth, therefore guaranteeing error-free work.

Optimum strength

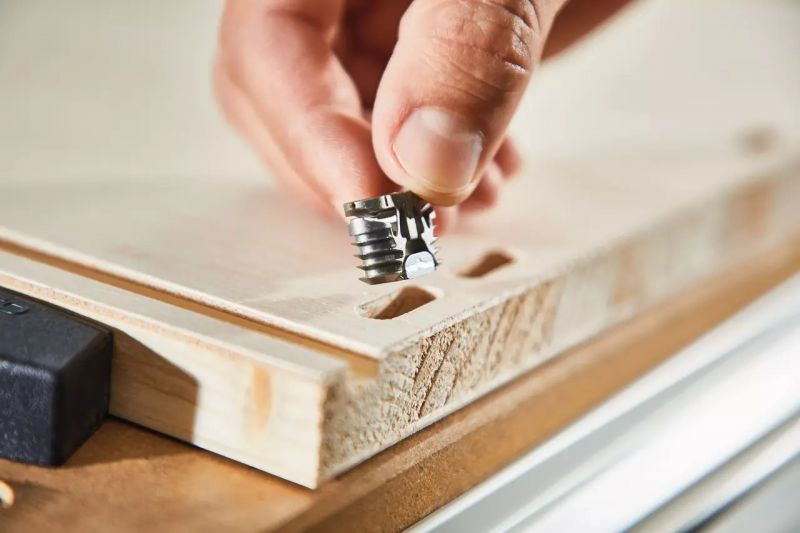

The split anchor provides the joint with optimum strength and ensures that the corner joint has a high level of stability.

Technical Data

Joint fixture (8 mm DOMINO dowel cross-cuts) D8
DOMINO routing depth for side part 15.00 mm
DOMINO routing depth for base part 28.00 mm
Drilling diameter in base part 15.00 mm
Panel thickness 18 – 28 mm
