Festool 203168 Corner connection

Items included

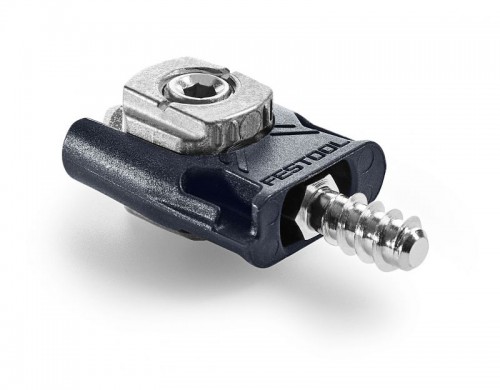

Split anchor
50x Bolt with Euro thread for drilling series of holes
50x Plastic trays
50x Cross anchor with threaded pin
without cover caps
Qty. in pack: 50.00 Pieces

The perfect joint. Now even more versatile. The new basic structure connectors and furniture connectors for the DOMINO DF 500 joining machine.
The new DOMINO basic structure connectors and furniture connectors enable stable yet flexible furniture designs that can be separated again. Because of their great versatility, they provide for a very large range of applications – from corner panel joints to centre panel joints to joints between a series of holes. For unique flexibility, speed and efficiency.

The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
The flush-screwed fixture elements protect each furniture component from being scratched
Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
The new detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm
for 50 corner joints with the DF 500 and drilling series of holes

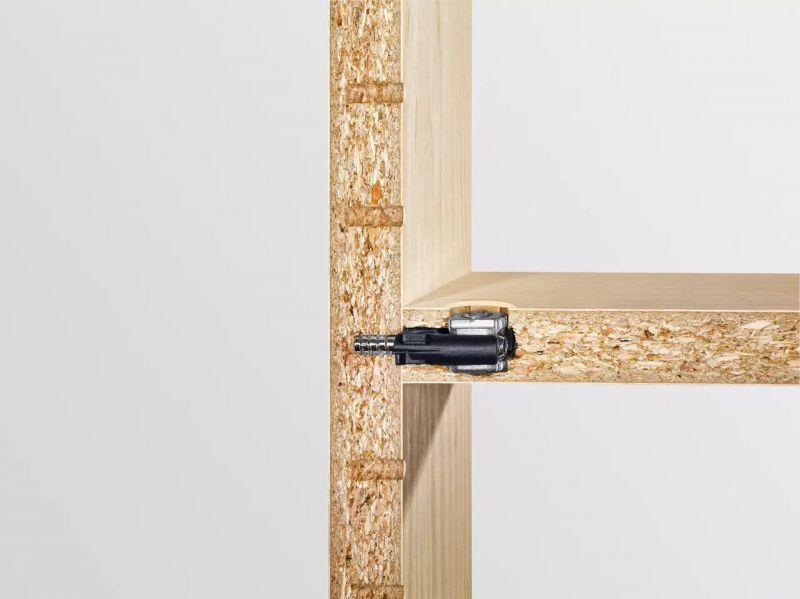

the DOMINO/LR 32 KV-LR 32 D8/50 connector is positioned both in the cupboard panel in a 5 mm hole in the series of holes and the base of the structure with the DOMINO jointer DF 500

Systems get it done:
The new DOMINO basic structure connectors and furniture connectors can be positioned simply and universally – in combination with DOMINO or a series of holes.

Achieve ideal results more quickly:
Because of its high tolerance compensation and high stability, the stable yet detachable DOMINO jointing system enables seamless assembly and disassembly of a piece of furniture – in the workshop as well as with the customer.

Convenient and safe:
All joints are simple and quick to machine like usual using the DOMINO DF 500 joining machine – no additional special machine is required.

With the DOMINO jointer DF 500
All joints can be produced quickly and easily with the DOMINO DF 500 joining machine

The fast joint

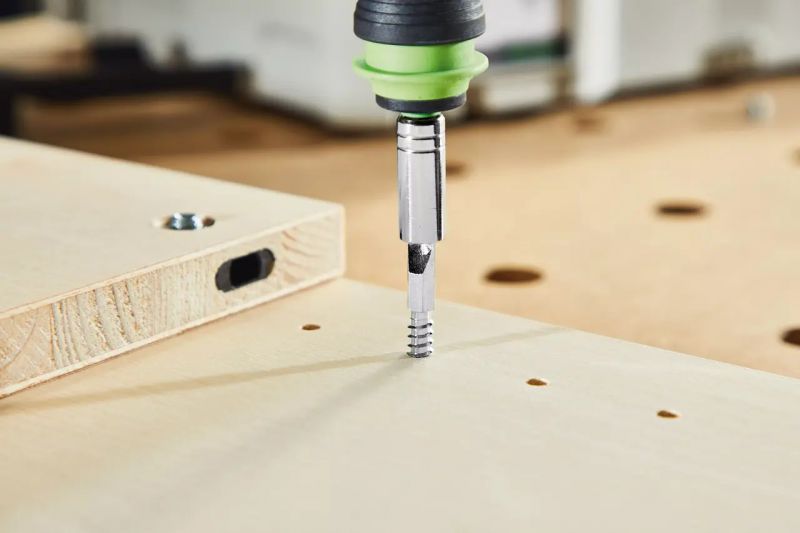

The new DOMINO basic structure connector enables a flexible connection between a series of 32 holes and the base of a structure. The fixture is turned directly into the 5 mm hole in the series of holes and anchored in the base of the structure using a DOMINO routed hole. For simple, fast and precise work.

It could not be easier
There is no easier way of producing a detachable corner joint. The drill template – which can be used with an extraction system – specifies the exact position of the drilled hole and the correct drilling depth, therefore guaranteeing error-free work.

Clever as a system
With just one setting on the DOMINO DF 500 joining machine, the stop is set to 37 mm. The routed hole can therefore be routed so that it fits perfectly with the series of 32 holes.

Technical Data

Joint fixture (8 mm DOMINO dowel cross-cuts) D8
Drilling diameter for Euro bolt 5.00 mm
DOMINO routing depth for base part 28.00 mm
Drilling diameter in base part 15.00 mm
Panel thickness 18 – 28 mm
