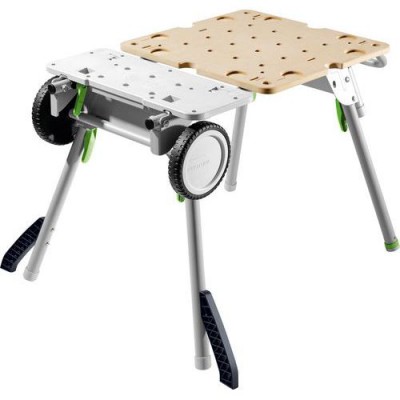

Festool 577001 UG-CSC-SYS Underframe for CSC SYS 50 Table Saw

Festool 577001 UG-CSC-SYS Underframe for CSC SYS 50 Table Saw



Functions

Transport easily. Work conveniently. Ideal in combination with the CSC SYS 50 cordless table saw.



The UG-CSC-SYS underframe is the ideal 3-in-1 solution for your assembly jobs. It acts as a hand cart for transport from the vehicle to the point of use – allowing you to easily roll an entire tower of Systainers of up to 80 kg to the construction site. The foldaway legs are folded out in an instant, giving you a worktable of 58 x 58 cm in size; a practical alternative to trestles. Workpieces are securely clamped on the surface via the perforated top. However, the underframe demonstrates its full ability in combination with the CSC SYS 50 cordless table saw. This is securely positioned in the holes of the work space – and already you're working at an ergonomic height of 90 cm. The legs simply remain folded in when using the CSC SYS 50 cordless table saw close to the ground, e.g. when laying a floor. The "shovel" that just served as a transport surface for the Systainers is now set up as an ideal support for long workpieces for all rip cuts, cross cuts and angled cuts.



Versatile: Transport aid, worktable and underframe for the CSC SYS 50 cordless table saw in one

Resilient: Transport a Systainer tower up to 80 kg. The Systainers engage securely on the base plate. Additional fixing possible with a lashing strap

Saves space: Folded together, the underframe takes up barely any space in the vehicle

Practical: The foldaway legs are folded out in an instant. Unevenness in the floor is compensated for by a foot compensation on one of the foldaway legs

Stable support: The typical Festool hole pattern of the worktop allows secure clamping of workpieces with clamp clips and lever clamps

A perfect fit: The ideal combination with the CSC SYS 50 cordless table saw. Creates a working height of 90 cm, offers a stable support for long workpieces. The legs remain folded in when working close to the ground (working height 24.5 cm)

puts the CSC SYS 50 cordless table saw at a working height of 90 cm (with legs folded out)



Product highlights



Made for mobility. Needs barely any space



In its role as a hand cart, it effortlessly transports not just the CSC SYS 50 cordless table saw but also all your Systainers to the point of use. This saves time, journeys and power. Folded together, it takes up barely any space in the vehicle – so you always have this clever assistant on board!



A worktable in an instant.



A work space of 58 x 58 cm is available to you in an instant; quickly set up thanks to convenient foldaway legs. Workpieces can be securely clamped onto it using a perforated top and clamps. The UG-CSC-SYS underframe is thus an ideal alternative to trestles on the construction site.



The perfect pair: Underframe and CSC SYS 50 cordless table saw.



The UG-CSC-SYS underframe is ideally tailored to use with the CSC SYS 50 cordless table saw. You position the CSC SYS 50 securely on the worktop via suitable holes – and raise it to an ergonomic working height of 90 cm. The "shovel" of the underframe offers a secure contact surface for rip and cross-cuts (especially for long workpieces).



Product details



Sturdy rollers



Rubberised rollers are designed for a load of up to 80 kg.



Safe transport



Systainers engage securely in the base plate. They can also be fixed with a lashing strap.



A firm grip



The handle for pushing and pulling is accessible at any time due to its clever shape. If the underframe is set up as a worktable, it is located underneath the work space and is never in the way.



Convenient foldaway legs



Folded out without tools; unevenness in the floor is easily compensated for by the swivel base.



Large work space



Simply turn the base plate – and you already have a work space of 58 x 58 cm. Working height: 68 cm.



Resilient



The worktable is designed for up to 100 kg.



Always clean



Protective feet that can be folded out protect the work space for as long as the underframe is being used as a hand cart. This keeps the work space clean.



Fixing securely



The hole pattern of the work space allows secure clamping and fixing of workpieces with Festool clamp clips or lever clamps.



Ergonomic working height



The CSC SYS 50 cordless table saw has a convenient working height of 90 cm on the underframe.



Usage

Main applications



Ideal underframe for CSC SYS table saw installation

Suitable for transporting Systainers in the tower in its role as a hand cart, the blade bears 80 kg

Suitable as a mobile worktable with a load of 100 kg



Technical Data



Table dimensions 580 x 580 mm

Dimensions (L x W x H) 1 067 x 580 x 245 mm

Tabletop height: High working position 677.00 mm

Tabletop height: Low working position 245.00 mm

Load capacity as worktable/hand truck 100 / 80 kg

Product weight without accessories 18.10 kg

Transport weight incl. accessories 25.20 kg
