Festool 584100 Hole drilling set LR 32-SYS
For OF 900, OF 1000, OF 1010, OF 1400

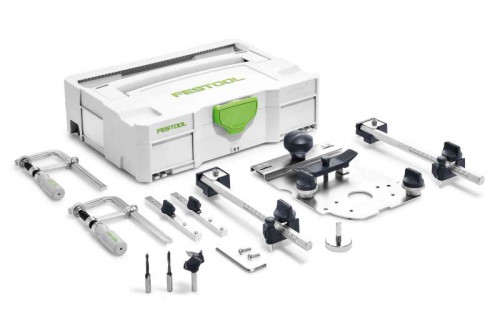

Items included
- guide plate
- centring mandrel
- hinge location cutter HM Ø 35 mm
- dowel drill HW Ø 5 mm (V-shaped tip)
- dowel drill HM Ø 5 mm (with centring bit and pre-cutter)
- 2 parallel side fences with adjustable stop
- FSZ 120 fastening clamps (two units)
- 2x Longitudinal stop
- screwdriver, WAF 5
- Systainer SYS 1 T-LOC
Functions
Holes in series
Hole series are always drilled with a spacing of 32 mm and a hole diameter of 5 mm or 3 mm. The hole series drilling system is a complete set for fast and simple production of series of holes for shelf supports, rear wall supports and fittings with the OF 1010 or OF 1400 router. Everything in a single Systainer.
for use with hole line guide rails
Product highlights
Achieve ideal results more quickly:
Highly efficient production of series of holes with 32 mm spacing.
Convenient and safe:
Everything together, everything well organised, everything is close to hand in the Systainer – the complete set incl. dowel drill with 5 mm diameter and fastening clamps.
Systems get it done:
Compatible with and can be connected to all Systainer generations, mobile dust extractors and many other system accessories.
Product details
Everything included
Everything in one Systainer: Guide plate, centring mandrel, operating tool, HW hinge location cutter with 35 mm diameter, HW dowel drill with 5 mm diameter (V-shaped tip), HW dowel drill with 5 mm diameter (with centre point and pre-cutter), two parallel side fences with adjustable stop, fastening clamp and two longitudinal stops.
Open, close, connect with a single turn
T-LOC is the central control element which combines three functions in one and is incredibly easy to operate.
Clear marking
Label fields for inserting business cards or labels that can be created and printed easily and with a clear font via the Festool website.
Secure connection
Systainers are compatible with and can be connected to all Systainer generations, mobile dust extractors and many other system accessories.
Usage
Main applications
- Complete range for preparing holes series with 32 mm spacing
- Including dowel drill dia. 5 mm and clamps
Technical Data
- Hole spacing 32.00 mm
- Length of series of holes (without guide extension) 1400 / 2424
- Side stop setting range 0 - 110 mm
