Paslode
Click For Bigger Image

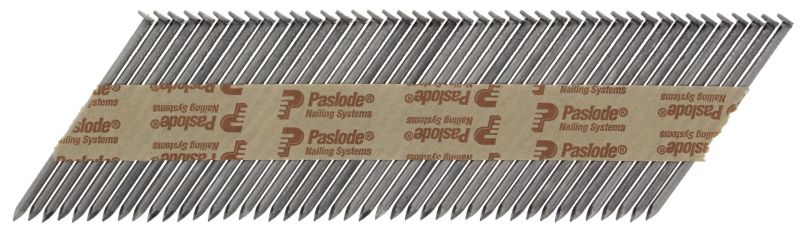

Paslode 3.1mm x 90mm Ring Shank Bright Nails 2,200 - 2 x Fuel Cells to suit IM350+ IM350CT - 141233

Product Code: PAS141233
£70.83 Ex VAT
£84.99 Inc VAT
Stock Estimated
delivery in
5-7 days
Quantity
ADD TO BASKET
SPECIFICATION
Brand: Paslode
DESCRIPTION

Paslode IM350+ Diamond point clipped head Nail packs with paper strip, supplied with Paslode Special Impulse gas fuel cells.



FINISH :



All Paslode nails are Chrome 6, cadmium and lead free and are available in five finishes to meet corrosion requirements.



Bright : Economy and bright nails meet the Eurocode 5 requirements for applications in service class 1 (indoor) Specification - No coating.



Galv Plus : Meet the Eurocode 5 requirements for applications in service class 1 and 2 (indoor and covered outdoor) Specification - Zn / Al alloy approx 15µm.



Electro Galv : Meet the Eurocode 5 requirements for all applications in service class 1 and 2 (indoor and covered outdoor) Specification - Zn and chromate minimum 7µm.



Hot Dipped Galv : Meet the Eurocode 5 requirements for all applications in service class 1, 2 and 3 (indoor, covered outdoor and outdoor) Specification - Zinc coating minimum 50µm



Stainless Steel : Meet the Eurocode 5 requirements for all applications in service class 1, 2 and 3 (indoor, covered outdoor and outdoor) Specification - A2 according to AISI 304, and A4 according to AISI 316.



SHANK :



Smooth Shank : The standard nail, offering high shear value and lowest withdrawal resistance. Fixing across the grain. Fixing into end grain. Clenching applications. Specification - Number of centres will vary with shank diameter.



Unilock Shank : Increases withdrawal resistance. Drives easier than ring shank fixing across the grain. Specification - The ringed parts have 24 rings per inch.



Ring Shank : Provides the highest withdrawal resistance. Fixing across the grain. Specification - RPI (Rings Per Inch) vary from 16 to 32 depending on Specification.



HEAD TYPES :



Round Head : The head area is designed to maximise resistance to the head being pulled through Specification - Head size between 2.0 and 2.5 times wire diameter according to EC5



Clipped Head : Increases number of nails per strip. The head area is designed to maximise resistance to the head being pulled through Specification - Head area corresponding to full round head area, according to EC5
