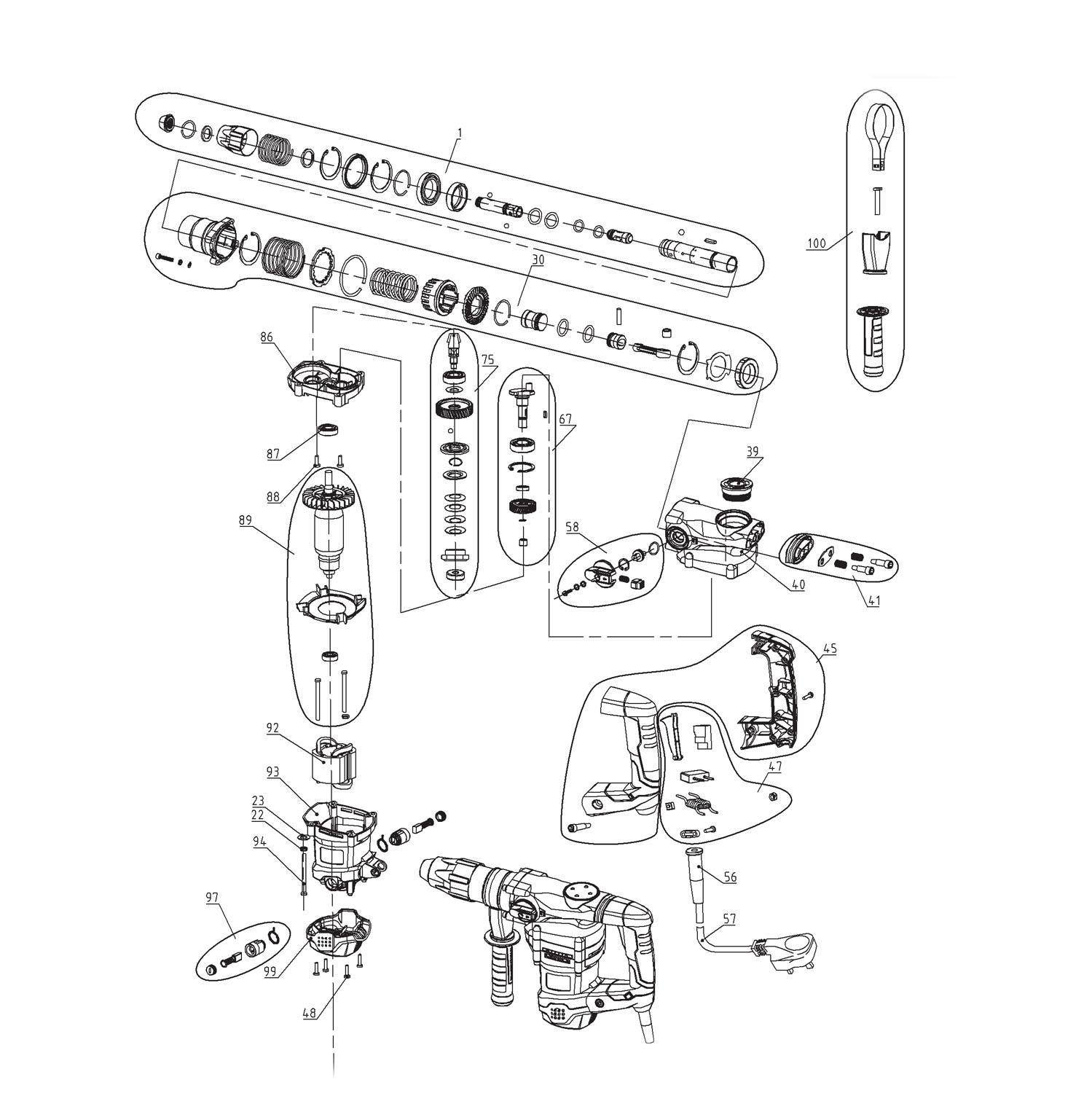

Draper SDSMAXHD1600E 56407 SDS MAX ROTARY HAMMER DRILL Spare Parts

Product Code: SPARE_56407
Jump To Part
Name of Part & Product Reference
Price Ex VAT
Price Inc VAT
Availability
Quantity
1
DRAPER 98493 FRONT END ASSEMBLY
Product Reference: 98493

(Part No. YSDSMAX1600E-1)
£41.66 Ex VAT
£49.99 Inc VAT
£41.66 Ex VAT
Price £49.99 Inc VAT
StockEstimated
delivery in
3-5 Days
ADD TO BASKET
30
DRAPER 98523 CLUTCH & HAMMER ASSEMBLY
Product Reference: 98523

(Part No. YSDSMAX1600E-30)
£54.16 Ex VAT
£64.99 Inc VAT
£54.16 Ex VAT
Price £64.99 Inc VAT
StockEstimated
delivery in
3-5 Days
ADD TO BASKET
39
DRAPER 98532 OIL COVER
Product Reference: 98532

(Part No. YSDSMAX1600E-39)
£2.06 Ex VAT
£2.48 Inc VAT
£2.06 Ex VAT
Price £2.48 Inc VAT
StockEstimated
delivery in
3-5 Days
ADD TO BASKET
40
DRAPER 98533 GEAR BOX
Product Reference: 98533

(Part No. YSDSMAX1600E40)
Contact Us For Price
41
DRAPER 98534 VIBRATION ASSEMBLY
Product Reference: 98534

(Part No. YSDSMAX1600E-41)
£2.36 Ex VAT
£2.84 Inc VAT
£2.36 Ex VAT
Price £2.84 Inc VAT
StockEstimated
delivery in
3-5 Days
ADD TO BASKET
45
NO LONGER AVAILABLE DRAPER 98538 HANDLE ASSEMBLY
Product Reference: 98538

(Part No. YSDSMAX1600E-45)
No Longer Available
47
DRAPER 98540 SWITCH ASSEMBLY
DRAPER 98540 SWITCH ASSEMBLY
Product Reference: 98540

(Part No. YSDSMAX1600E47)
£11.66 Ex VAT
£13.99 Inc VAT
£11.66 Ex VAT
Price £13.99 Inc VAT
StockEstimated
delivery in
3-5 Days
ADD TO BASKET
56
DRAPER 98549 CABLE COVER
Product Reference: 98549

(Part No. YSDSMAX1600E-56)
Contact Us For Price
57
DRAPER 98550 CABLE
Product Reference: 98550

(Part No. YSDSMAX1600E-57)
£15.83 Ex VAT
£18.99 Inc VAT
£15.83 Ex VAT
Price £18.99 Inc VAT
StockEstimated
delivery in
3-5 Days
ADD TO BASKET
58
DRAPER 98551 FUNCTION DIAL ASSEMBLY
DRAPER 98551 FUNCTION DIAL ASSEMBLY
Product Reference: 98551

(Part No. YSDSMAX1600E-58)
£3.33 Ex VAT
£3.99 Inc VAT
£3.33 Ex VAT
Price £3.99 Inc VAT
StockEstimated
delivery in
3-5 Days
ADD TO BASKET
67
DRAPER 98560 CRANKSHAFT ASSEMBLY
DRAPER 98560 CRANKSHAFT ASSEMBLY
Product Reference: 98560

(Part No. YSDSMAX1600E-67)
£14.16 Ex VAT
£16.99 Inc VAT
£14.16 Ex VAT
Price £16.99 Inc VAT
StockEstimated
delivery in
3-5 Days
ADD TO BASKET
75
DRAPER 98568 SMALL GEAR ASSEMBLY
Product Reference: 98568

(Part No. YSDSMAX1600E-75)
£25.83 Ex VAT
£30.99 Inc VAT
£25.83 Ex VAT
Price £30.99 Inc VAT
StockEstimated
delivery in
3-5 Days
ADD TO BASKET
86
DRAPER 98579 INNER COVER
Product Reference: 98579

(Part No. YSDSMAX1600E-86)
Contact Us For Price
87
DRAPER 98580 BEARING BOARD
Product Reference: 98580

(Part No. YSDSMAX1600E-87)
£2.06 Ex VAT
£2.48 Inc VAT
£2.06 Ex VAT
Price £2.48 Inc VAT
StockEstimated
delivery in
3-5 Days
ADD TO BASKET
88
DRAPER 98581 NYLOCK HEX.SOCKET HD.BOLT M6*14
Product Reference: 98581

(Part No. YSDSMAX1600E-88)
£2.06 Ex VAT
£2.48 Inc VAT
£2.06 Ex VAT
Price £2.48 Inc VAT
StockEstimated
delivery in
3-5 Days
ADD TO BASKET
89
DRAPER 98582 ROTOR ASSEMBLY
Product Reference: 98582

(Part No. YSDSMAX1600E-89)
£42.49 Ex VAT
£50.99 Inc VAT
£42.49 Ex VAT
Price £50.99 Inc VAT
StockEstimated
delivery in
3-5 Days
ADD TO BASKET
92
DRAPER 98585 STATOR
Product Reference: 98585

(Part No. YSDSMAX1600E-92)
£22.05 Ex VAT
£26.46 Inc VAT
£22.05 Ex VAT
Price £26.46 Inc VAT
StockEstimated
delivery in
3-5 Days
ADD TO BASKET
93
DRAPER 98586 MOTOR HOUSE
Product Reference: 98586

(Part No. YSDSMAX1600E-93)
Contact Us For Price
94
DRAPER 98587 NYLOCK HEX.SOCKET HD.BOLT M6*60
Product Reference: 98587

(Part No. YSDSMAX1600E-94)
£2.06 Ex VAT
£2.48 Inc VAT
£2.06 Ex VAT
Price £2.48 Inc VAT
StockEstimated
delivery in
3-5 Days
ADD TO BASKET
97
DRAPER 98590 BRUSH ASSEMBLY (PAIR)
DRAPER 98590 BRUSH ASSEMBLY (PAIR)
Product Reference: 98590

(Part No. YSDSMAX1600E-97)
£12.49 Ex VAT
£14.99 Inc VAT
£12.49 Ex VAT
Price £14.99 Inc VAT
StockEstimated
delivery in
3-5 Days
ADD TO BASKET
99
DRAPER 98592 CHASSIS
Product Reference: 98592

(Part No. YSDSMAX1600E-99)
Contact Us For Price
100
DRAPER 98591 SIDE HANDLE ASSEMBLY
DRAPER 98591 SIDE HANDLE ASSEMBLY
Product Reference: 98591

(Part No. YSDSMAX1600E-100)
£12.49 Ex VAT
£14.99 Inc VAT
£12.49 Ex VAT
Price £14.99 Inc VAT
StockEstimated
delivery in
3-5 Days
ADD TO BASKET
