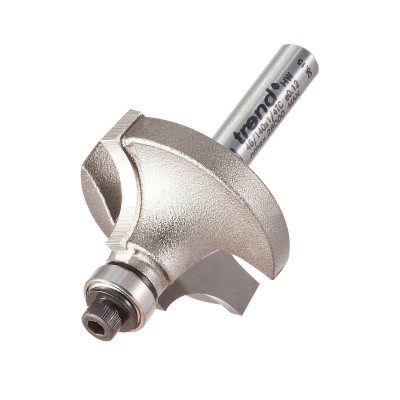

TREND 46/140X1/4TC B/GUIDED OVOLO 9.5MM RAD 253356

Self-guiding cutters for rounding over edges do not require a side fence.
They are supplied with two bearings.
Use the larger bearing for a round-over.
If the cutter is lowered, a top quirk can be produced.
A full round/bullnose for stair treads can also be produced by taking a second pass from the opposite side of the workpiece.

Dimensions:
D=32 mm
C=16 mm
B=9.5 mm
B2=12.7 mm
R=9.5 mm
Shank Diameter=1/4 inch


Shank Diameter: 1/4

Grade: TCT

Diameter Metric: 32

Cut Length Metric: 16

Bearing Diameter Metric: 9.5
