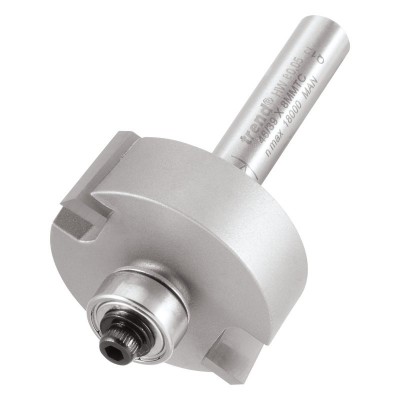

TREND 46/39X8MMTC TWO FLUTE GUIDED REBATE 35MM DIA

Popular rebate sets which include different size bearings for a choice of rebates.
Ease of setting-up and accurate depth of cut.
Ideal for rebating straight and shaped work pieces.
Ref. 46/39L has a 60mm shank length to give access to deep rebates.
Ref. 46/44 is ideal with delicate applications such as musical instrument production, when a small rebate is required for insertion of purfling.
When using bearing Ref. B95A, make two passes when a full depth of cut is required by using a larger bearing first.


Dimensions:
D=35 mm
C=12.7 mm
B=9.5 mm
B2=12.7 mm
B3=16 mm
B4=19 mm
Shank Diameter=8 mm
Rebate E:
B19A=7.9 mm
B16A=9.5 mm
B127A=11.1 mm
B95A=12.7 mm

Shank Diameter: 8 mm

Grade: TCT

Diameter Metric: 35

Cut Length Metric: 12.7

Bearing Diameter Metric: 19
