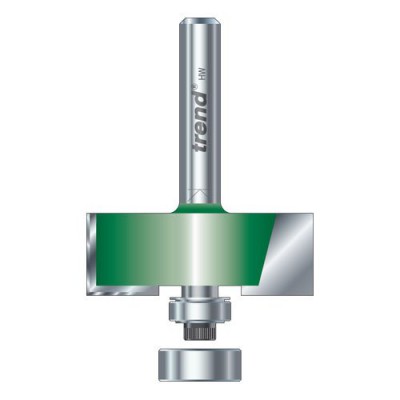

TREND C040X8MMTC SELF G/REBAT 35MM DIA X 12.7MM CUT

These cutters are self-guiding and can be used to produce rebates, lap joints, tongues and rebated corners.
When using bearing Ref. B95A make two passes when a full depth of cut is required.

Dimensions:
D=1 3/8 inches
D=35 mm
C=1/2 inch
C=12.7 mm
B=9.5 mm
B2=12.7 mm
E=11.1 mm
E2=12.7 mm
Shank Diameter=8 mm


Shank Diameter: 8 mm

Grade: TCT

Diameter Imperial: 1 3/8

Diameter Metric: 35

Cut Length Imperial: 1/2

Cut Length Metric: 12.7

Bearing Diameter Metric: 9.5
