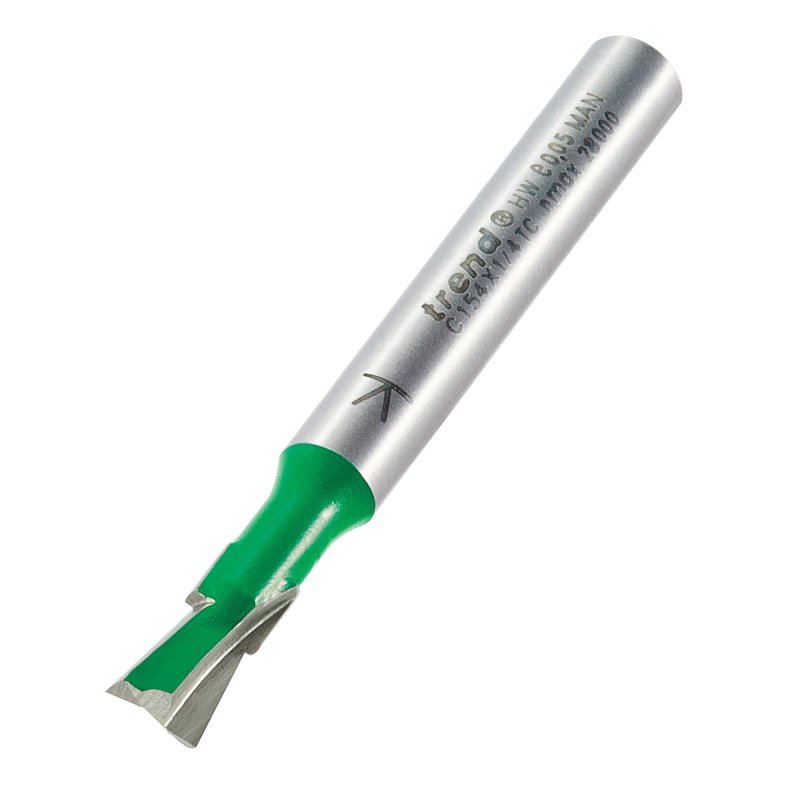

TREND C154X1/4TC DOVETAIL 6.0MM D X 98 DEGW 2 FLUTE

These dovetail cutters produce a tight reliable joint for drawers, boxes etc.
Refs. C154 & C041A can be used with Trend CDJ300, CDJ600 & DJ300 dovetail jigs.
To suit user preference, the table shows angles from the horizontal and the profiles show angles from the vertical.
These cutters have Solid Carbide inserts.

Dimensions:
D=15/64 inch
D=6 mm
C=9/32 inch
C=6.9 mm
OL=57.5 mm
A=98 degrees
Shank Diameter=1/4 inch


Shank Diameter: 1/4

Grade: TCT

Diameter Imperial: 15/64

Diameter Metric: 6

Cut Length Imperial: 9/32

Cut Length Metric: 6.9

Overall Length Metric: 57.5

Angle: 98
