TREND ELLIPSEJ/A ELLIPSEJIG TYPE A ELLIPSEJIG A

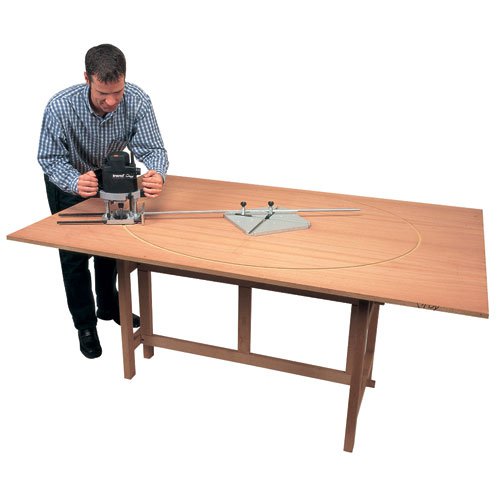

Designed to enable virtually any router to cut ellipses and circles.
Useds for corner tables, arches, desks and mirrors.
Setting-up and operating is simple and effective, as proven by existing industrial users.
A connector plate on the end of the bar fits directly onto the fence rods of Trend routers. For the fixing of other makes of routers, an accessory adaptor base plate is required.
By using one slide, the jig can be adapted for cutting circles.
With additional extension bars, larger ellipses and circles can be cut.
Router not included.


Dimensions:
Ellipse major axis =1800 mm
Ellipse minor axis max=1650 mm
Ellipse minor axis min=1400 mm

Ellipse major axis =1500 mm
Ellipse minor axis max=1350 mm
Ellipse minor axis min=1100 mm

Ellipse major axis =1200 mm
Ellipse minor axis max=1050 mm
Ellipse minor axis min=800 mm

Ellipse major axis =900 mm
Ellipse minor axis max=760 mm
Ellipse minor axis min=550 mm

Ellipse major axis =800 mm
Ellipse minor axis max=650 mm
Ellipse minor axis min=550 mm

Ellipse major axis =700 mm
Ellipse minor axis max=580 mm
Ellipse minor axis min=580 mm

Circle dia. min.=580mm
Circle dia. max.=1800mm
