Trend HINGE/JIG Hinge Recessing Jig

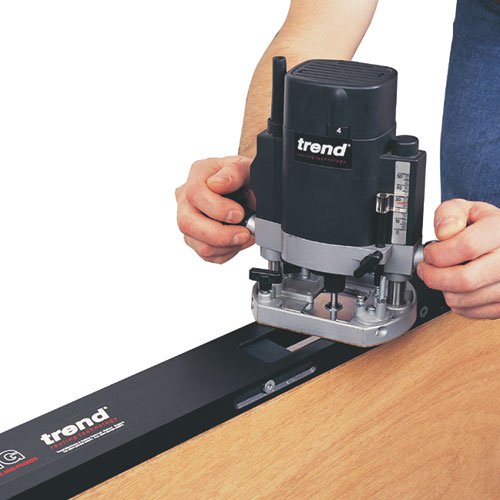

The Hinge Jig is a portable template set designed for recessing hinges in wooden doors & frames.
It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
Used on-site & in joinery shops to increase productivity with excellent results.
Four apertures for fire door requirements.
No need for marking out in the conventional way.
Quick & simple to set-up as the hinge is used as the pattern.
Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges. Use with a light duty router with 1/4 inch collet.
Long reach router cutter required, 12mm diameter with 70mm overall length.
Angled position slots to prevent creep.
Patent No. GB2285410.
T4EK router requires a ref. UNIBASE.

Dimensions:
Hinge sizes possible
Length min.=2 5/8" (67mm)
Length max.=5" (127mm)
Width min.=3/8" (9.5mm)
Width max.=1 3/8" (35mm)

Door sizes possible
Height min.=6' 5" (1955mm)
Height max.=6' 10" (2100mm)
Thickness min.=5/8" (16mm)
