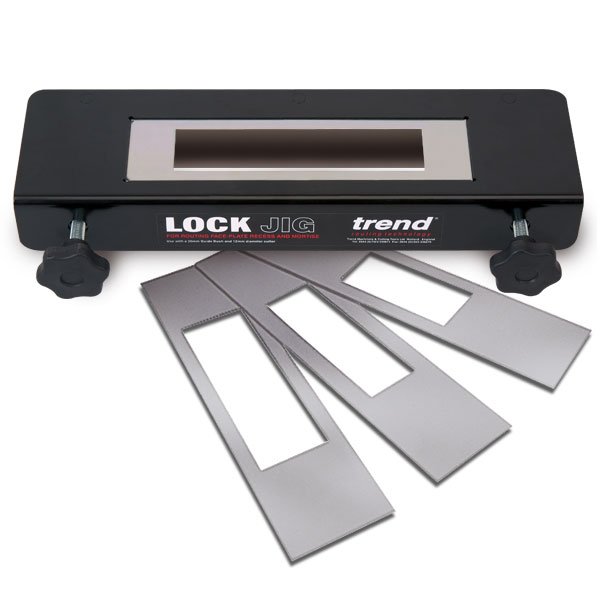

TREND LOCK/JIG LOCK JIG

This jig uses a set of interchangeable templates & with a router will cut the mortise & face-plate recess for popular door locks.
For most common sash mortises & dead locks, with up to 3 inch deep mortises & a 7/8 inch or 1inch face-plate.
Deeper mortises can be achieved with a suitable size of auger bit.
Fast, clean & accurate results on doors 34mm to 58mm thick, even in hardwood.
CNC precision manufacturing plates & body.
The jig requires a plunge router with a 80mm plunge, fitted with a 30mm guide bush & 12mm diameter long reach cutter.

Dimensions:
Includes templates for locks having the following
Face-plate Dimensions
Imperial (Metric)=Template
7/8"x6" (22.2x156 mm)=1
7/8"x6 " (22.5x152.5 mm)=2
1"x4 3/4" (25.4x121 mm)=3
1"x5"(25.4x128 mm)=4
1"x5 1/4"(25.4x133.5 mm)=5
1"x5 3/4"(25.4x145 mm)=6
1"x6"(25.4x153 mm)=7
1"x6"(25.4x156.5 mm)=8
1"x6 1/2"(25.4x165.5 mm)=9
1"x7"(25.4x177 mm)=10
1"x2 1/4"(25x57.5 mm)=11 UPPER
1"x2 1/4"(26x56.5 mm)=11 LOWER

Mortise Dimensions

Imperial (Metric)=Template
5/8"x2 3/4" 16x72 mm=A
5/8"x4 1/4" 16x107 mm=B
3/4"x3" 19x78 mm=C
3/4"x4 1/4" 19x109 mm=D
