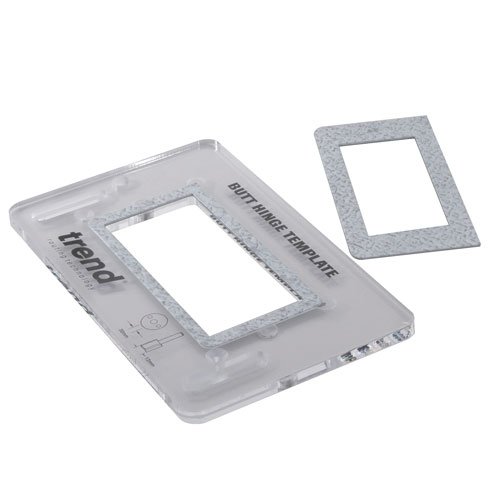

TREND TEMP/BH/A TEMPLATE BUTT HINGE 75/100MM

A routing template that allows a router to create a hinge recess on a door. Made from clear 8mm thick plastic.
Includes metal templates for 75mm and 100mm butt hinges.
Magnets in template frame to hold templates.
Cuts rounded corners which can be removed with a corner chisel or chisel.
Use on doors from 35mm to 44mm thick.
Requires 12mm diameter cutter and 30mm guide bush.
A user made batten 44mm x 34mm x 450mm is also needed.
Design Reg. No. 00132246-001.

Dimensions:
Size 214mm x 135mm x 8mm
