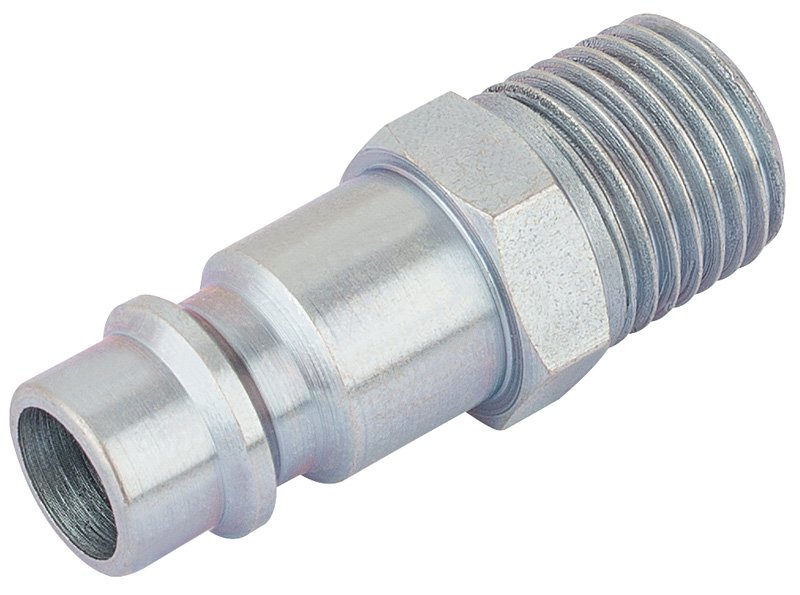

DRAPER 1/4\" BSP MALE NUT PCL EURO COUPLING ADAPTOR (SOLD LOOSE)

Brand: Draper Tools

•   For heavy duty high flow applications
•   Tested to over 1 million cycles
•   Connects to most popular and European adaptor profiles (Cejn, Rectus etc.)
•   Zinc passivated to significantly improve corrosion resistance
•   Hard wearing steel construction
Sold loose.
Specification:
Flow capacity at 6 bar inlet and
0.5bar pressure drop   ...      78cfm (2200L/min)
Max. working pressure   ...      500psi (35bar)
Test pressure   ...      725psi (50bar)
Max. burst pressure   ...      2030psi (140bar)
Temp. range   ...      -40 to 100°C
Nominal flow diameter   ...      7.4mm
