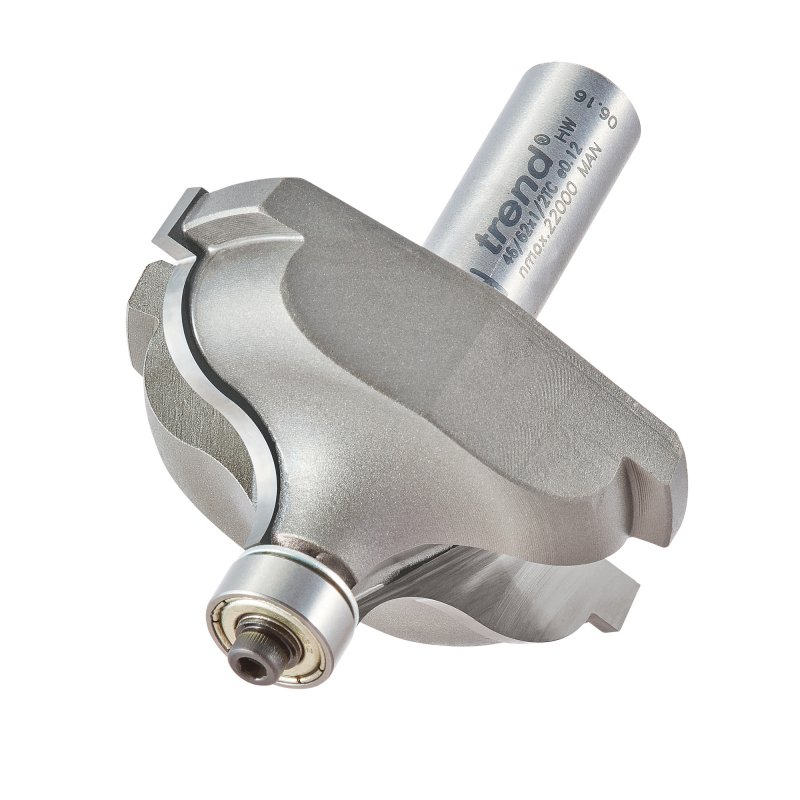

TREND 46/62X1/2TC B/GUIDED QUIRK 9.5MM RAD

Self-guiding cutter with facility to change profile by fitting larger bearing & varying the depth.
Supplied with two bearings. The larger bearing removes the bottom quirk.

Dimensions:
D=57 mm
C=25.5 mm
B=9.5 mm
B2=12.7 mm
R=9.5 mm
Shank Diameter=1/2 inch


Shank Diameter: 1/2

Grade: TCT

Diameter Metric: 57

Cut Length Metric: 25.5

Bearing Diameter Metric: 9.5
